4SCU16LE142P 3.5T 16S AC OMNIGUARD 1.343117

PART AAC1642
QUANTITY

About this item

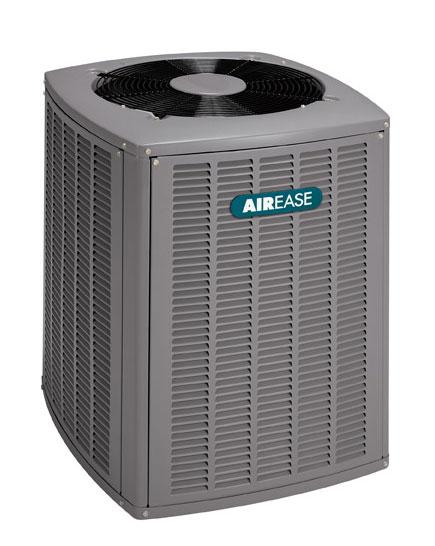

AIREASE® Louvered Enhanced Split System Air Conditioner, Pro Series, 4SCU16LE Model, 42 ton Nominal Capacity, 39500 Btu/hr BTU Rating, 208-230 VAC Voltage Rating, 35 A Amperage Rating, 1/6 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, High Efficiency Scroll Compressor Type, 11.2 EER Rating, 16 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 77 dBA Sound Level, Grommet Mounting Type, 0 to 125 deg F Temperature Rating, Steel, Baked Polyester-Painted, 37.75 in H x 29.38 in W x 31.25 in D Dimensions
Make & Model
Brand ---
Part # ---
Specifications
Color Family White
Certifications & Standards
TAA/BAA Compliant 1
Packaging Dimensions
Height 7.800
